Electret capsule on phantom power

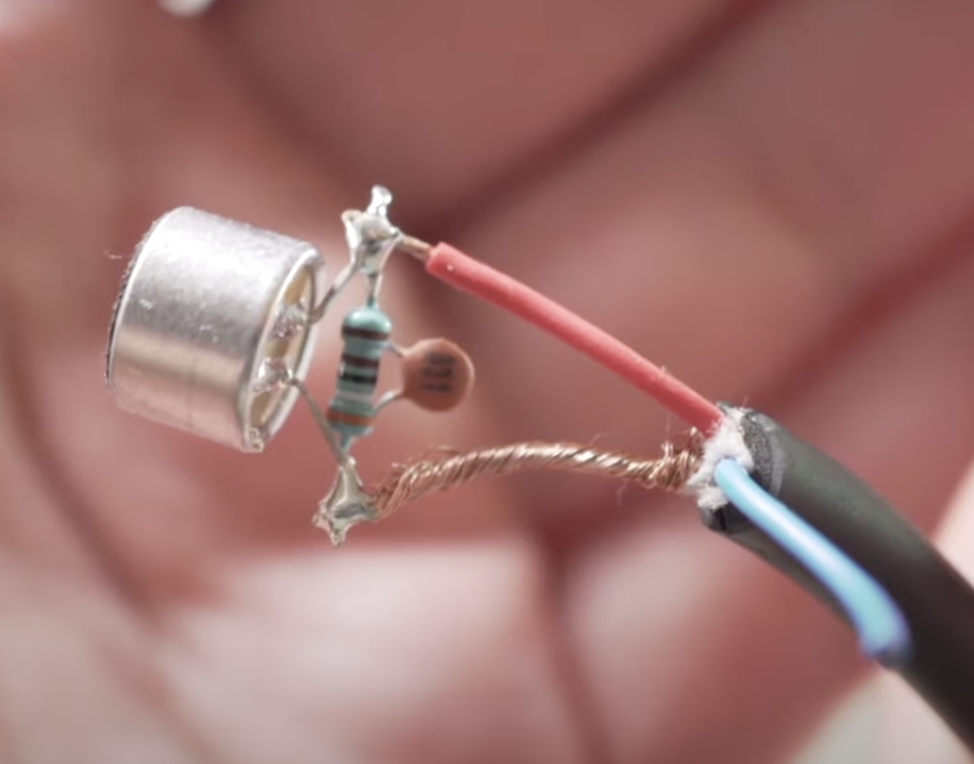

It mostly will have 1,5 to 10 volts what is much more lower then 48 V phantom power. Solder a 6,8 kΩ between both legs. And to lower rf dirt solder a 100 pF capacitor in parallel to the resitor.

capacitor parallel with resistor between both capsule legs

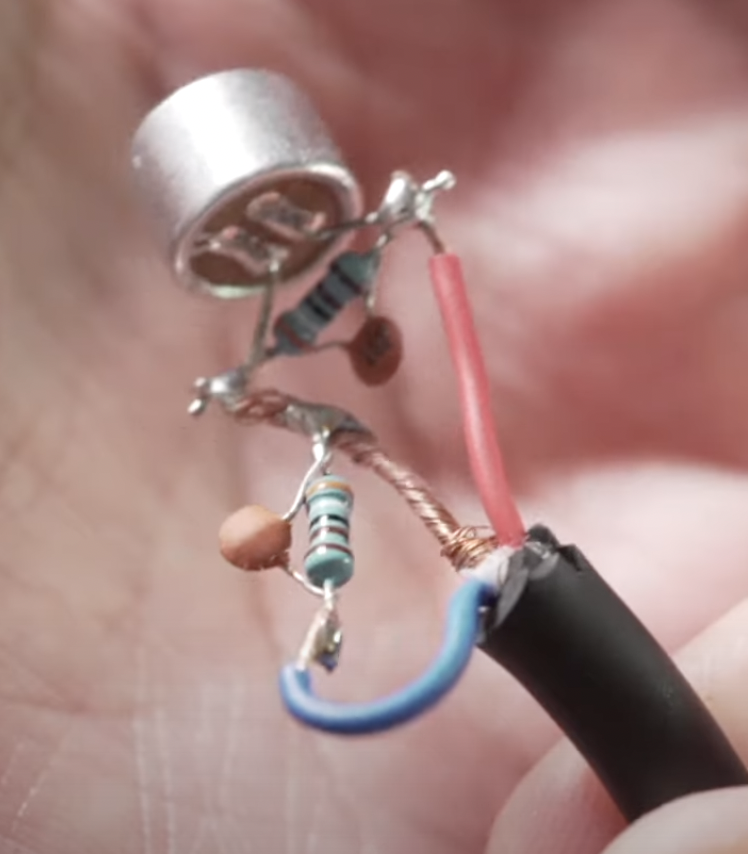

To not have an open and floating cold wire solder again a 6,8 kΩ resitor and 100 pF capacitor in parallel and then in series on the open cold leg. This then on ground.

cold leg with resistor and capacitor combination on ground

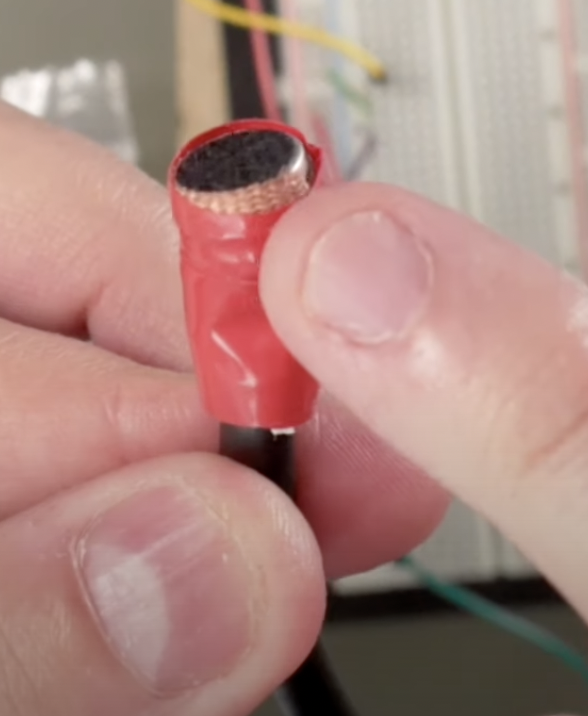

Then best shield it all with desolder wire copper band.

desolder copper band around the capsule as a shield

Source: How to make a binaural ("3D") microphone by LeoMakes
